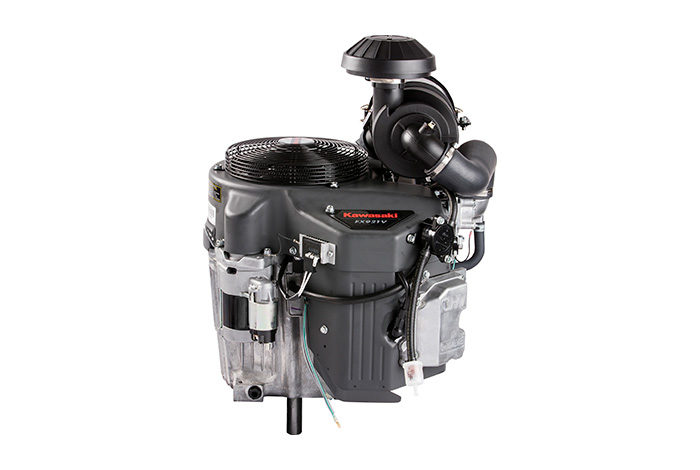

FX921V

      Model FX921V
      Engine type Air-cooled, 4-stroke, Vertical shaft, OHV
      Valve's form OHV
      Displacement 999 cm3
      Bore x stroke 89.2 x 80 mm
      Max. power 21.6 kW (28.9 hp) / 3600 rpm
      Max. torque 66.7 Nm (49.2ft.lbs) / 2400 rpm
      Fuel tank capacity - L
      Oil capacity 2.35 L
      Dimensions 508 x 500 x 636 (L*W*H mm)
      Dry Weight 62.6 kg
    Features
    Overhead V-valve
    3 valves per cylinder
    90 degree V-twin
    High performance lubrication system
    Electronic spark ignition
    Automatic compression release
    Twin barrel, internally vented carburetor with fuel shut-off solenoid
    High efficiency oil cooler
    Rotating grass screen
    Dual stage canister air filter
    Cast Iron cylinder liners
    Heavy duty shift-type starter
    Options
    Shaft variations
    Flywheel PTO
    Various speed control system
    13 or 20 Amp charge coil
    Various oil drains
    Oil pressure switches
