FX751V

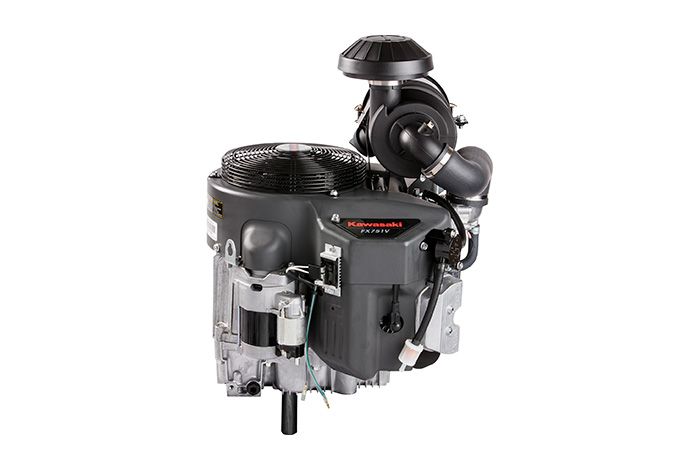

      Model FX751V
      Engine type Air-cooled, 4-stroke, Vertical shaft, OHV
      Valve's form OHV
      Displacement 852 cm3
      Bore x stroke 84.5 x 76 mm
      Max. power 17.5 kW (23.4 hp) / 3600 rpm
      Max. torque 62.0 Nm (45.7ft.lbs) / 2000 rpm
      Fuel tank capacity - L
      Oil capacity 2.4 L
      Dimensions 488 x 472 x 626 (L*W*H mm)
      Dry Weight 56.4 kg
    Features
    Overhead V-valve
    90 degree V-twin
    High performance lubrication system
    Electronic spark ignition
    Automatic compression release
    Twin barrel, internally vented carburetor with fuel shut-off solenoid
    High efficiency oil cooler
    Rotating grass screen
    Dual stage canister air filter
    Cast Iron cylinder liners
    Options
    Flywheel PTO
    Various speed control system
    13 or 20 Amp charge coil
    Various oil drains
    Oil pressure switches
