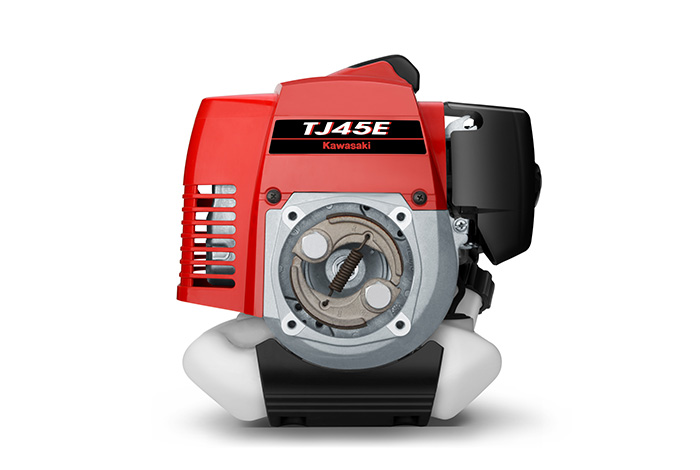

TJ45E

      Model TJ45E
      Engine type Air-cooled, 2-stroke, Single cylinder, Horizontal shaft
      Valve's form
      Displacement 45.4 cm3
      Bore x stroke 42.5 × 32 mm

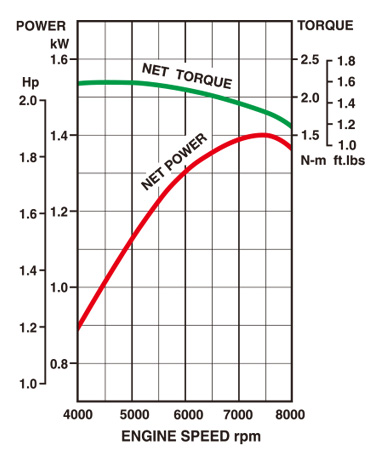

      Max. power 1.42 kW(1.90HP) / 7500 rpm
      Max. torque 2.18N・m (1.61ft.lbs) / 5000 rpm
      Fuel tank capacity 0.9 L
      Oil capacity L
      Dimensions 189 × 264 × 262 (L*W*H mm)
      Dry Weight 3.9 kg
    Features
    Diaphragm carburetor
    KAR starter
    Large oil drain port
    Polyurethane foam air filter
    Full cover design
    50:1 fuel mixture
    Centrifugal clutch installed
    Options
    Engine kill switch
    Assembly Drawing Download
