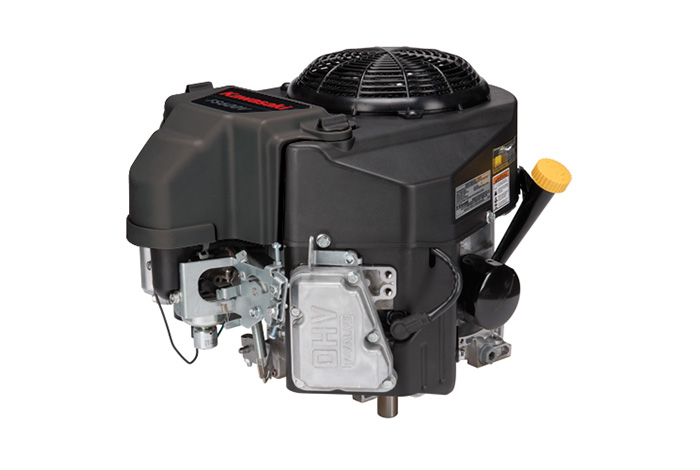

FS600V
Overhead V-valve、90 degree V-twin、High performance lubrication system、Electronic spark ignition、Automatic compression release、Internally vented carburetor with fuel shut-off solenoid、Rotating grass screen、Dual element air filter、Cast Iron cylinder liners、Muffler option、Bendix type starter
| Model | FS600V |
| Engine type | Air-cooled, 4-stroke, Vertical shaft, OHV |
| Valve's form | OHV |
| Displacement | 603 cm3 |
| Bore x stroke | 73 x 72 mm |

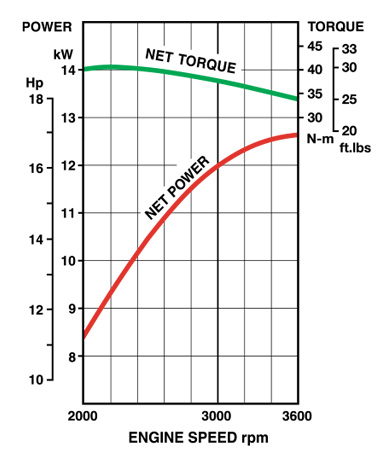

| Max. power | 12.7 kW (17.0 hp) / 3600 rpm |
| Max. torque | 40.4 Nm (29.8ft.lbs) / 2200 rpm |
| Fuel tank capacity | - L |
| Oil capacity | 2.0 L |
| Dimensions | 484 x 434 x 377 (L*W*H mm) |
| Dry Weight | 36.7 kg |
产品说明
-
可选项传动轴尺寸;飞轮制动器;13或20安培线圈;多种排油;油压开关
